1000m Multi-Function Golf and Hunting Range Finder 6X Laser Rangefinder with Angle Switch and Magnetic Adsorption

Xiangyang Youbo Photoelectric Co., Ltd
Contact Now

1000m Multi-Function Golf and Hunting Range Finder 6X Laser Rangefinder with Angle Switch and Magnetic Adsorption

Brand Name : CTWR

Model Number : R32

Certification : CE,FCC,ROHS

Place of Origin : China

MOQ : 10 peice

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 10000 per month

Delivery Time : 10-15 days

Packaging Details : can be customized

Magnification : 6x

Field of view :

Objective lens Dia. : 25mm

Eyepiece Dia. : 15mm

Exit pupil diameter : 3.5mm

Weight (with battery) : 160g±5g

Dimensions : 101*75*39 mm

Contact Now

1000m Multi-Function Golf and Hunting Range Finder 6X Laser Rangefinder with Angle Switch and Magnetic Adsorption

SPECIFICATION:

R32 multi-function golf laser rangefinder is a portable photoelectric instrument that integrates telescope and laser angle measuring instrument, combining the functions of telescope, golf rangefinder and goniometer.

EXCELLENT PROFESSIONAL GOLF RANGEFINDER: Golf laser rangefinder with the latest design, Slope Tech, Fast Flag-Lock, 6X Magnification, 1000m rangefinder

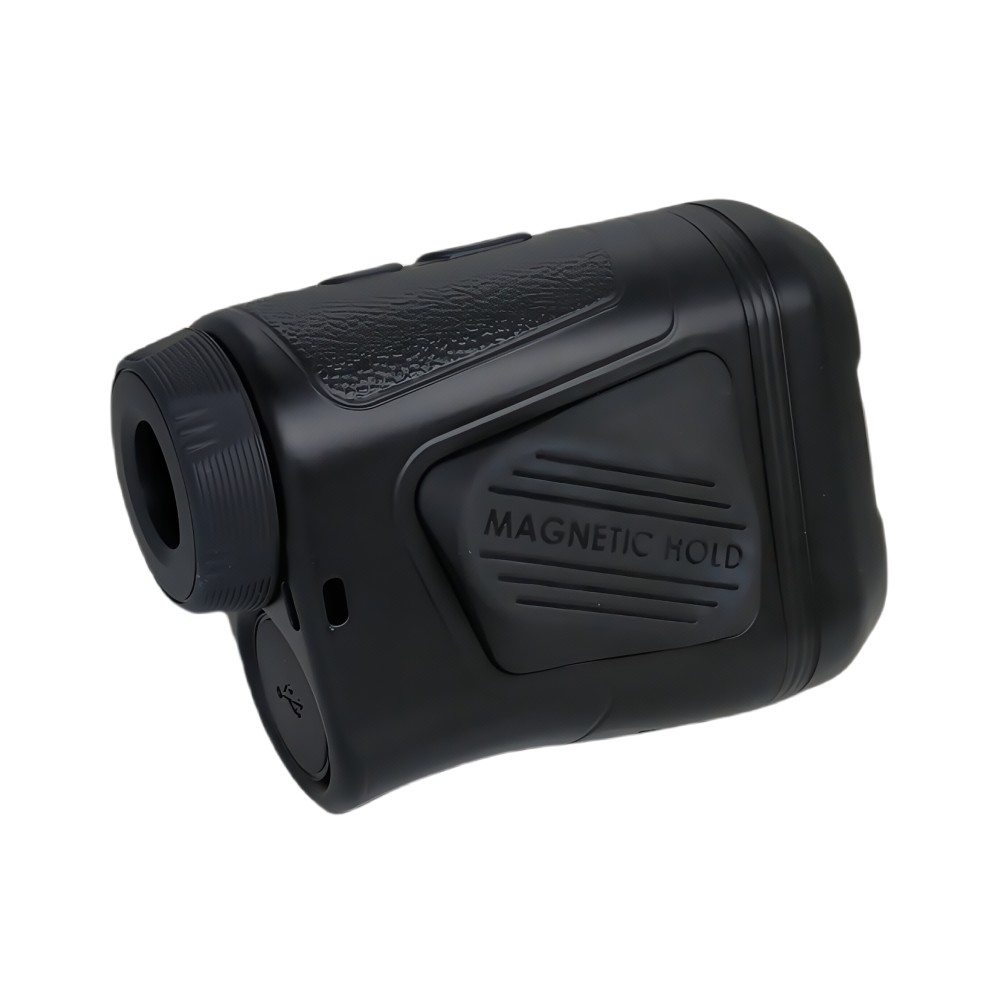

MAGNETIC ADSORPTION: It can be easily adsorbed on the golf cart or metal surface, no need for frequent storage, easy to use.

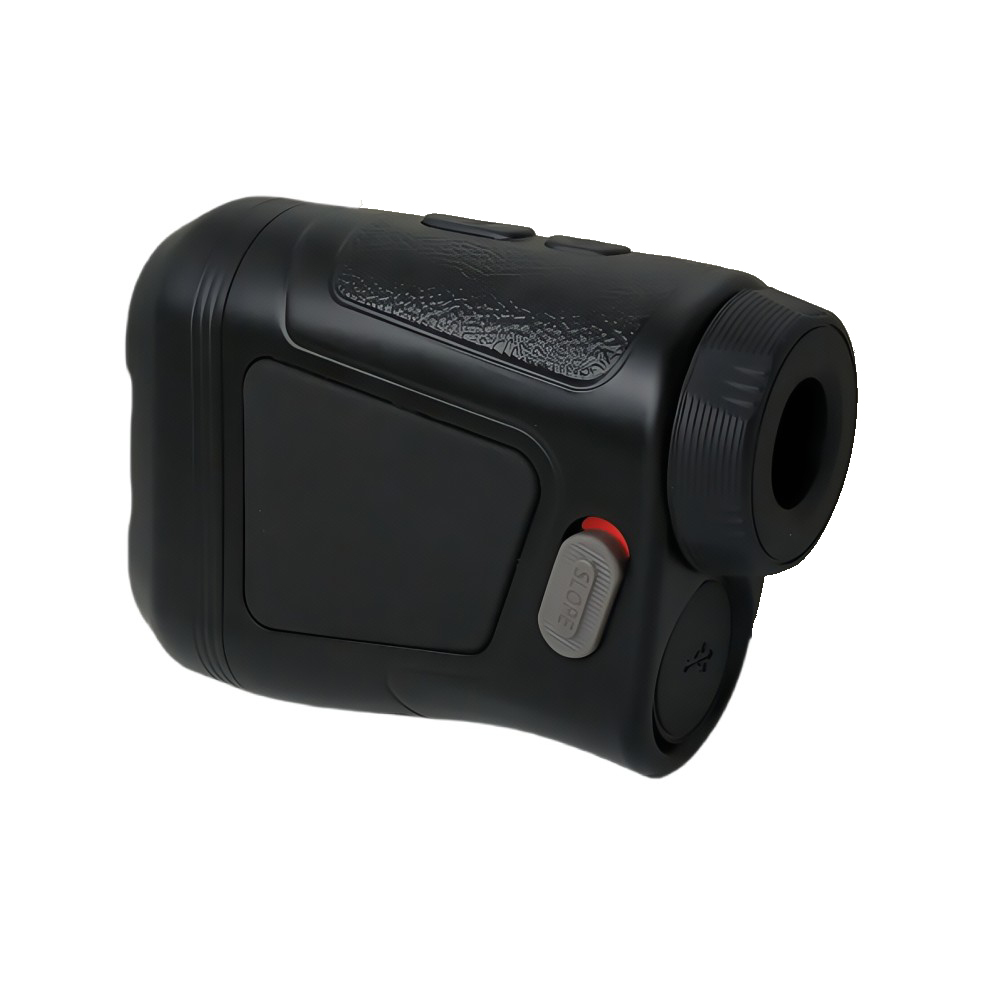

WITH ANGLE SWITCH: When the angle switch is turned on, it is the golf slope measurement mode (M3), which displays more readings than the normal golf mode (M2), including slope measurement height and slope measurement adjustment distance.

IT ALSO HAS THE FUNCTIONS OF A RANGEFINDER AND A GONIOMETER:while obtaining the target distance, it can also simultaneously display the angle between the line connecting the telescope to the target point and the ground plane, the relative height and the horizontal distance.

ENHANCED OPTICS FOR SUPERIOR PERFORMANCE:Benefit from Fully Multi-Coated Lens, reducing glare and enhancing light transmission for a vivid, clear image and a wide field of view. Adjust the diopter of the laser rangefinder for precise focus on the display, ensuring optimal viewing clarity

LASER RANGEFINDER WITH SLOPE SWITCH TECHNOLOGY: The rangefinder's slope technology compensates for distances up or down the hole (up to 45 degrees compensation). This rangefinder is a must-have competition-level golf rangefinder for professional golfers. (Accuracy: +/- 1 meter, Measuring range: 5-1000 meters)

FAST FOCUS SYSTEM & ACCURATE READINGS: laser rangefinder adopts the advanced target acquisition system that ensures you receive the accurate yardage to the flag or desired location. Provides fast measurement with ±1yd accuracy, this golf range finder also with flag seeker tech to accurately measure target subjects. Perfect for tournament legal golf rangefinders.

5 RANGING MODES FOR GOLFING:
Mode 1: Normal distance measurement mode
Mode 2: Normal golf mode
Mode 3: Golf slope measurement mode
Mode 4: Hunting bow distance measurement mode
Mode 5: Speed ​​measurement mode

LONG-LASTING BATTERY LIFE: Built-in 450mAH lithium battery, USB lithium battery direct charging

NO NEED TO WEAR GLASSES TO ADJUST THE FOCUS BY ROTATING THE EYEPIECE: Both presbyopic and myopic people can observe with naked eyes, and the clarity of the eyepiece can be adjusted freely

PORTABLE AND CONVENIENT DESIGN:With a compact size of 10 x 7.5 cm, this golf rangefinder is easy to carry and can be easily attached to your golf bag or belt, making it the perfect golfing companion.

1000m Multi-Function Golf and Hunting Range Finder 6X Laser Rangefinder with Angle Switch and Magnetic Adsorption

1000m Multi-Function Golf and Hunting Range Finder 6X Laser Rangefinder with Angle Switch and Magnetic Adsorption

1000m Multi-Function Golf and Hunting Range Finder 6X Laser Rangefinder with Angle Switch and Magnetic Adsorption

1000m Multi-Function Golf and Hunting Range Finder 6X Laser Rangefinder with Angle Switch and Magnetic Adsorption

PARAMETER:

Performance
5Y to 1000Y at visibility 5km
Rangefinder Range
5-1000Y
Rangefinder Accuracy
5-500M(Y) ±1M(Y)
500-1000M(Y) ±2M(Y)
±1M(Y)±0.2%
Inclinometer range
-45° to +45°
Inclinometer Accuracy
±2°
Distance unit settings
meters yards
Angle unit settings
degrees
Data displayed
range, elevation, horizontal distance,height difference, slope adjusted distance
Function limitation of slope measurement in golf competition
slope switch
Vibration prompt function
Yes
(First target priority)
Yes
Flag locking distance
≤300M
Slope
Yes
Scan
Yes
Battery condition
Yes
Magnification X Obj Lens:
6 x 24
Optics Magnification
6x
Objective diameter
24mm
Material of the Prism
BK4
Eyepiece Diameter
15mm
Angle of view
Field of view (at 1000m/yds)
113m/yds
Exit pupil
3.5mm
Exit pupil Relief
15±1mm
Lens Coating:
Multi-Coated
Diopter compensation
± 4dpt.
Laser
class 1, eye-safe, 905nm
Maximum measuring time
≤0.5s
Operating temperature
-10 to 50°C
Waterproof
IPX54
Battery
rechargeable lithium battery capacity 450mA/h
Weight (with battery)
160g±5g
Dimensions
101*75*39 mm
